Period (since) filter: Overview
The period (since) filter allows viewing the dashboard for temperature statuses that have persisted for a specific time period. If a temperature alarm (low, high or unknown) hasn't persisted for the selected time period, it is indicated as normal. The default period is 'Now' which shows the current status of all assets which refreshes every 30 minutes.
TEXT GUIDE
Navigate to the Assets page

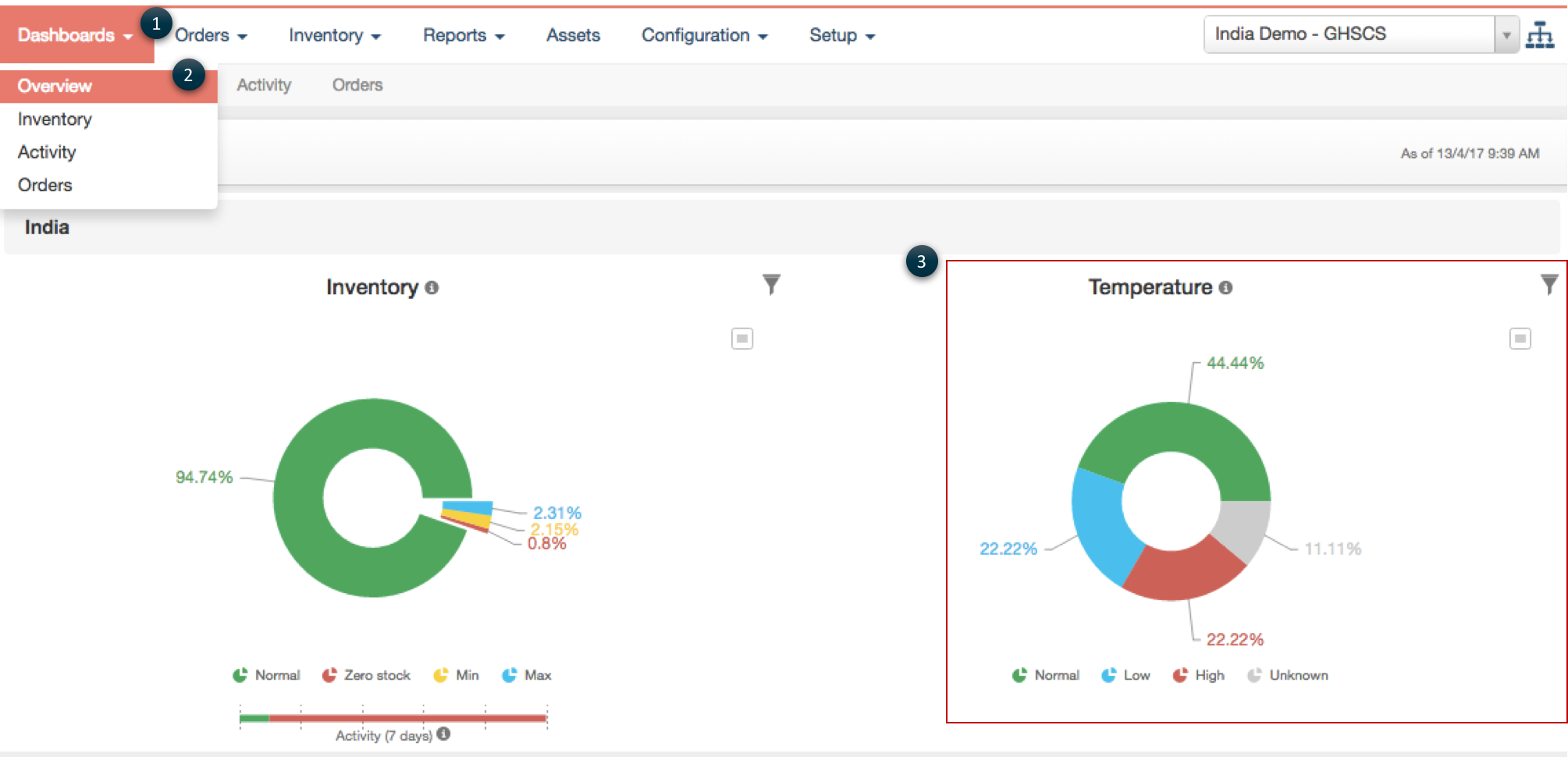

To view the dashboard, navigate to the Dashboard Overview page:
- Click on the Dashboards tab in the main menu
- Click on Overview in the drop-down list
- The temperature dashboard is displayed on the right
Filter assets using Period (since)

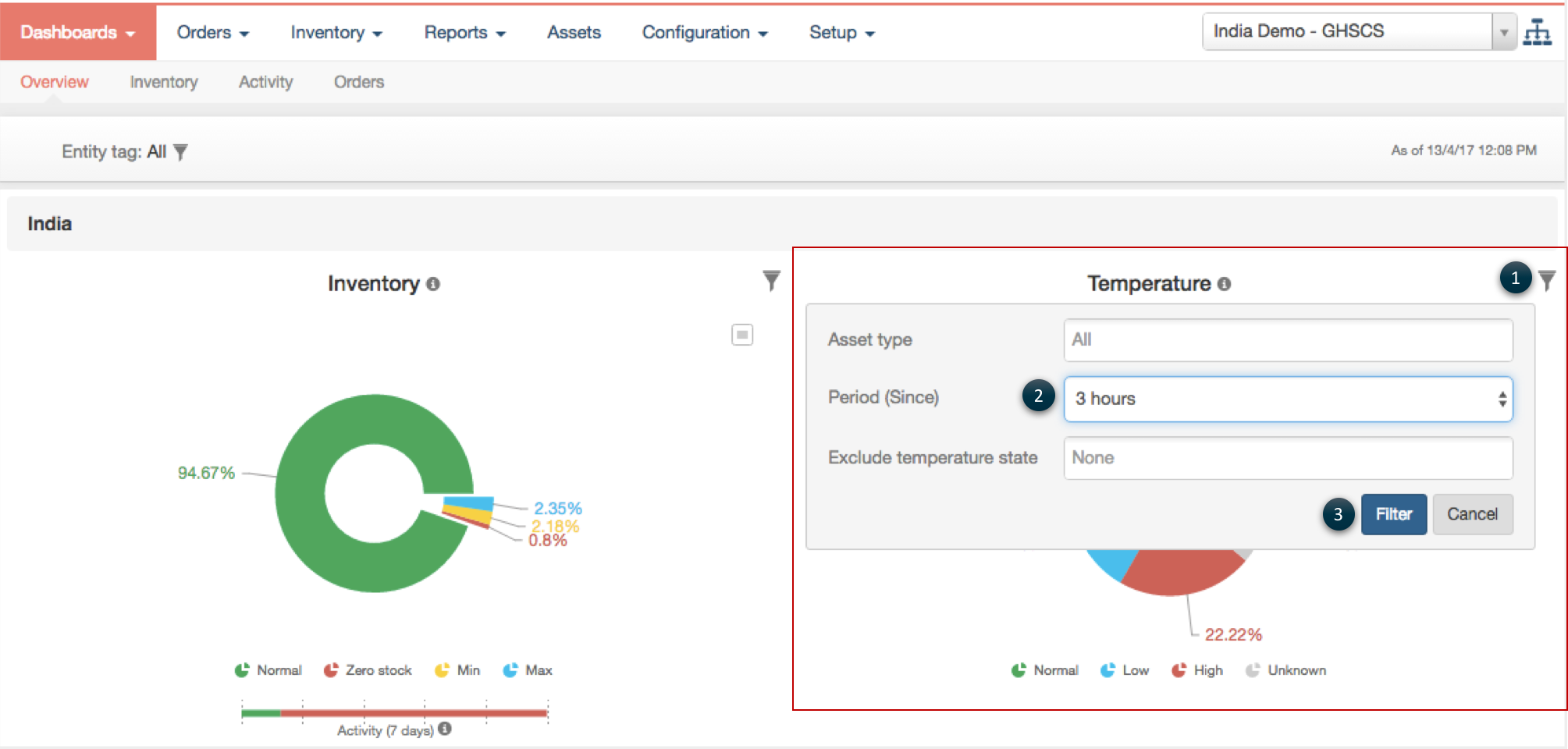

- Click on the Filters icon on the top right of the donut chart
- In the Period (since) field, select a time period to view the temperature status of assets that have persisted for that time period
- Click on Filter

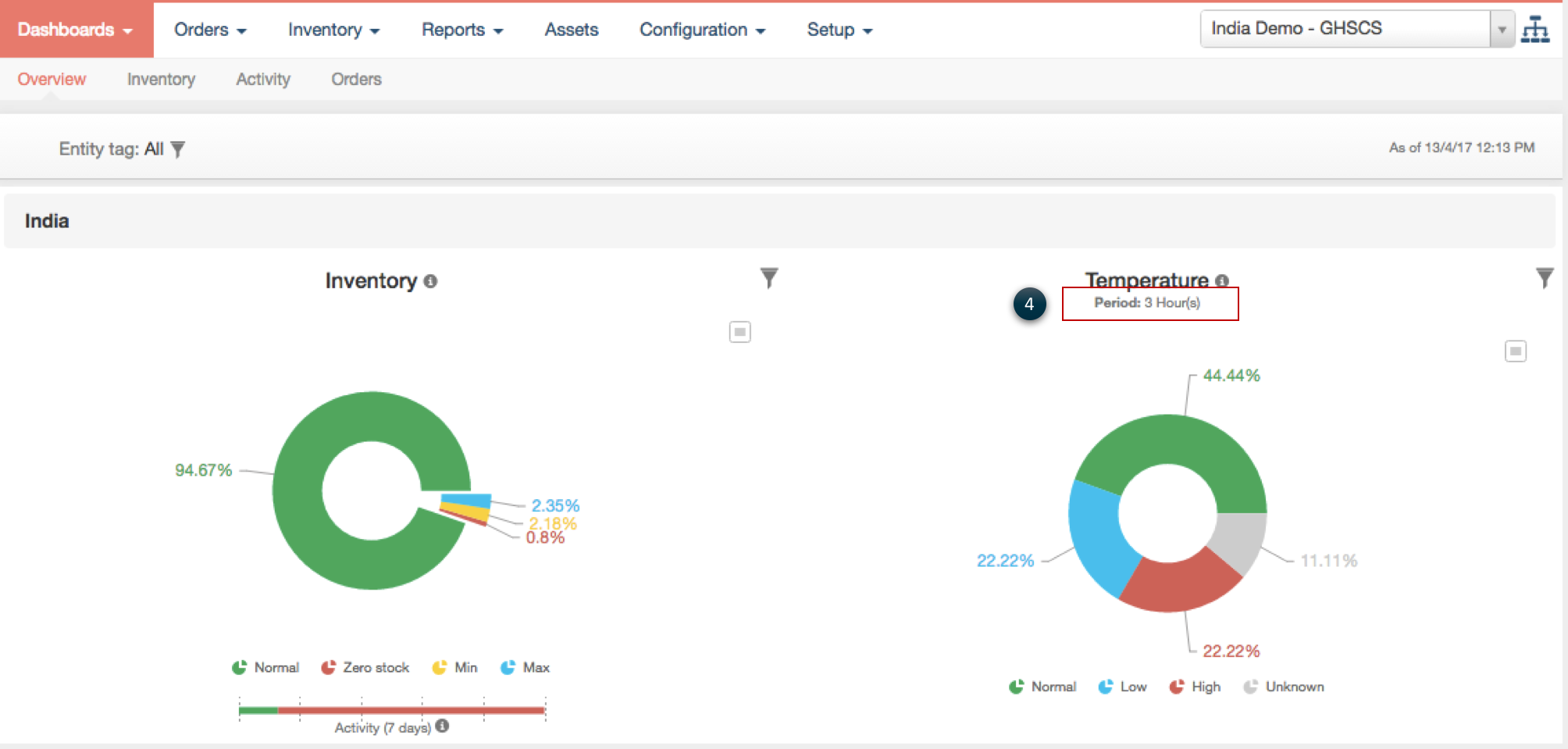

- The temperature dashboard is updated with the selected period shown above the chart
 |
NOTE The dashboard can be filtered further using one or more of the other filters |
